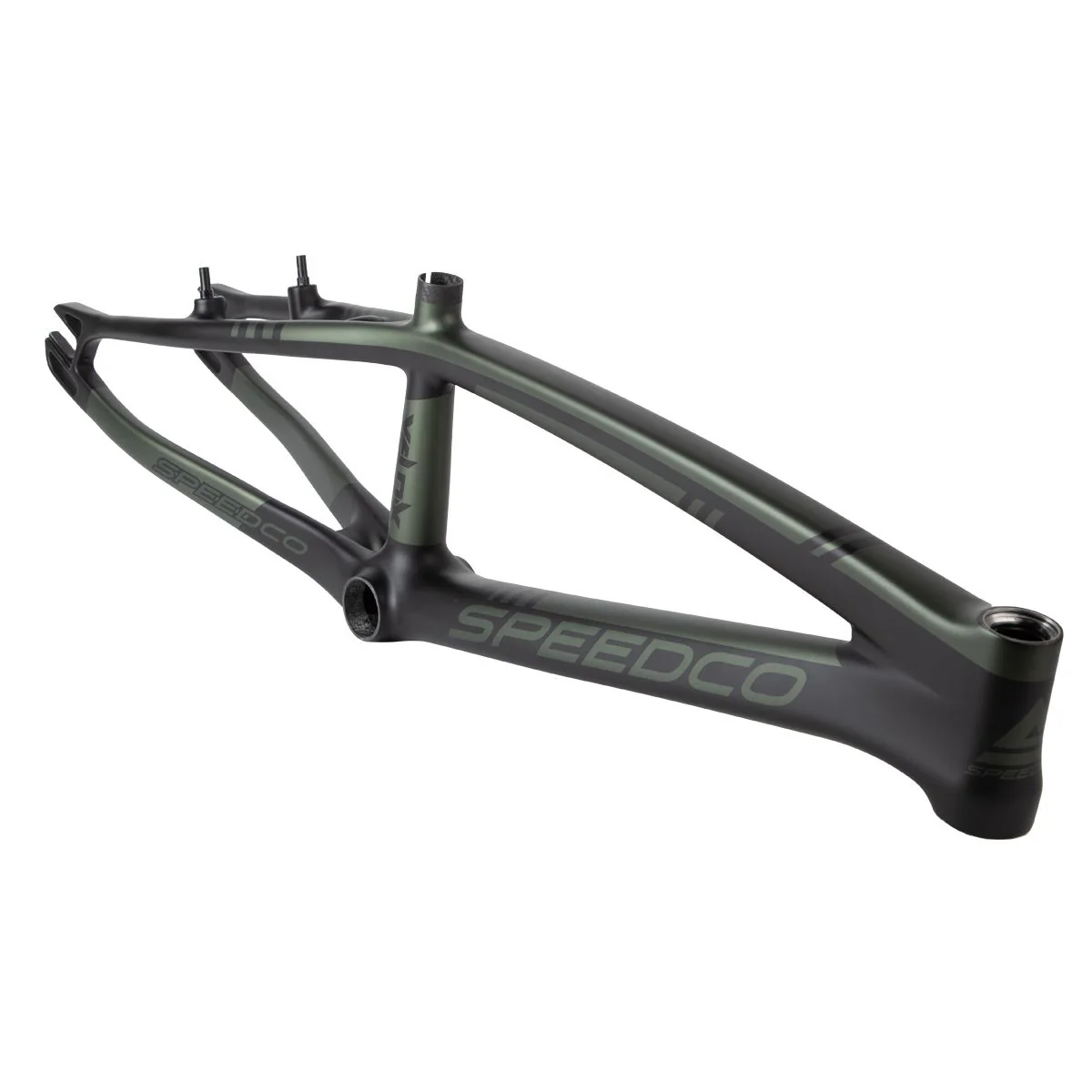

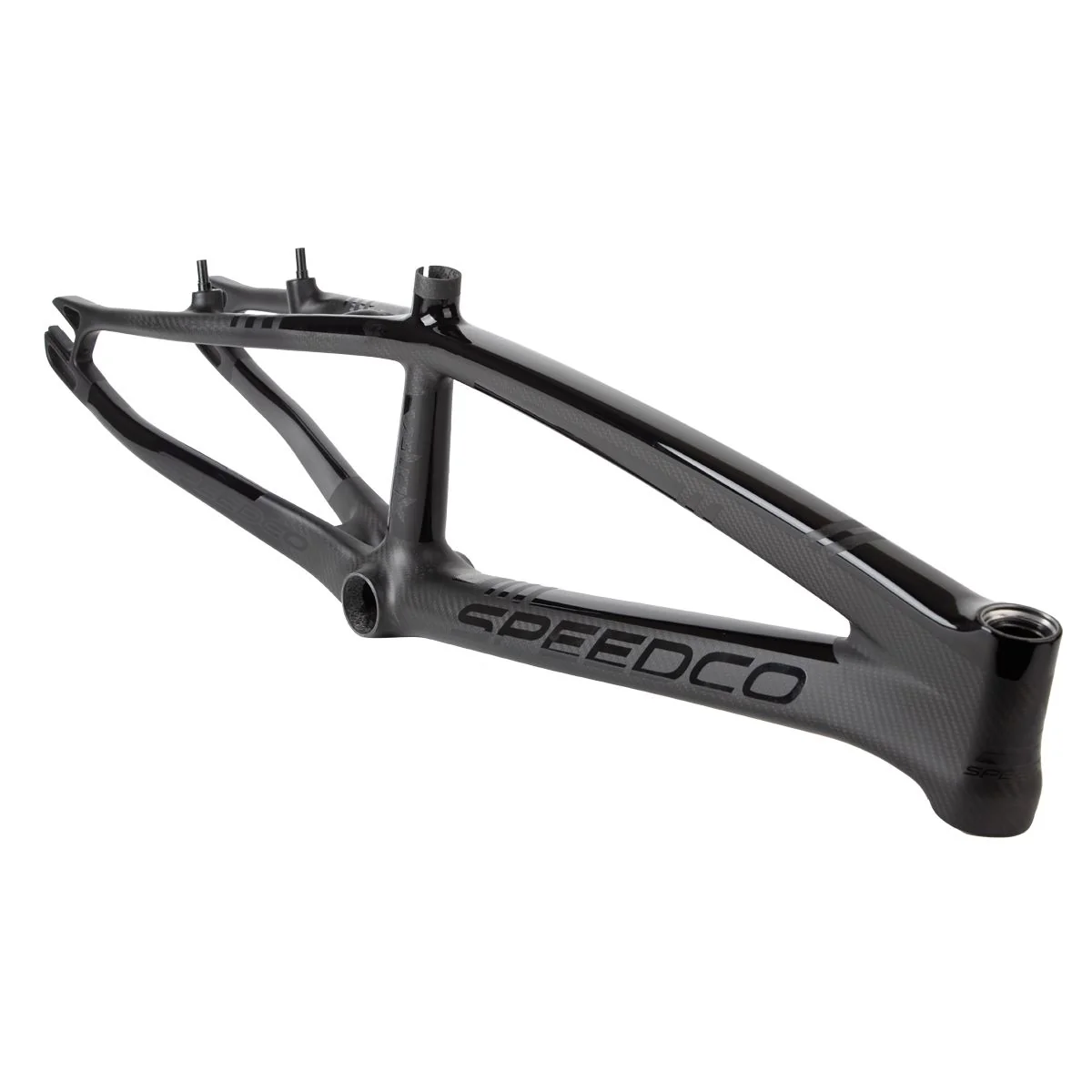

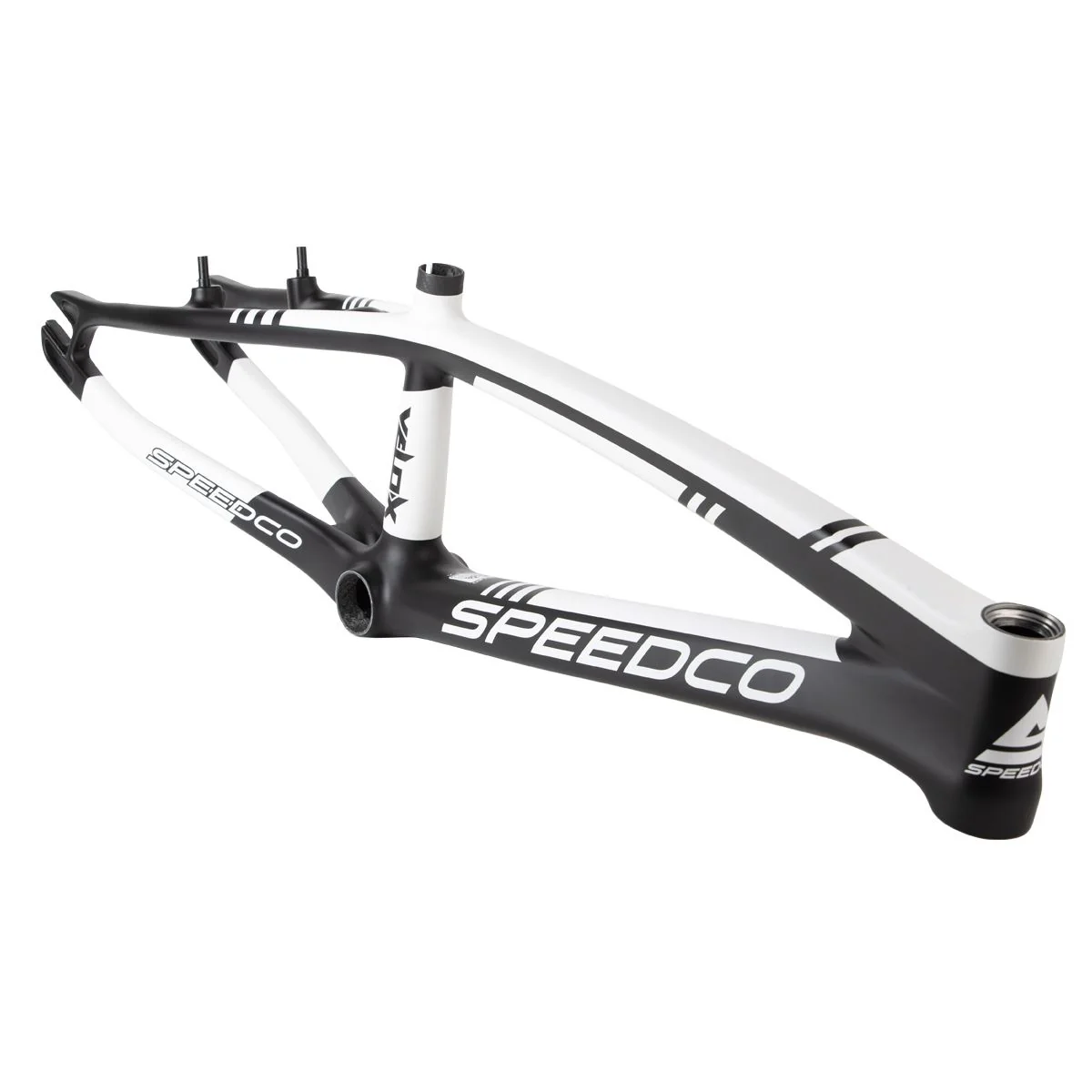

The Velox V3 is one of the lightest race frames in the world, functionally designed to maximize rigidity and responsiveness. Available in a full range of pro and youth sizes with key features to guarantee you #FeelYourFastest
PRO Specs:
- Available in 6 sizes - Pro, Pro XL, Pro XXL, Pro XXXL, Pro 24 & Pro 24 XL
- Manufactured from Toray T700 Carbon Fiber
- Tapered 1-1/8” to 1.5” head-tube
- Pressfit bb86 bottom bracket
- 72mm down-tube at BB junction to optimize flex.
- Universal dropout system compatible with 10mm, 15mm, 20mm
- Integrated chain-tensioner
- Removable brake bosses / compatible with disc or caliper brake (post plugs included)
- Internal cable routing
- 2.95lbs (Pro XL)
YOUTH Specs:
- Available in 3 sizes – Junior, Expert, and Expert XL
- Manufactured from Toray T700 Carbon Fiber
- Integrated 1-1/8” head tube
- Threaded 68mm BB shell
- Removable brake bosses / compatible with disc or caliper brake (post plugs included)
- Internal cable routing
- 22.2mm seat-tube
- 1.95lbs (Junior)
Velox V3 Geometry Chart
| SIZE | TOP TUBE | BB HEIGHT | REAR CENTER | SEAT TUBE ANG | HEAD TUBE ANG | WEIGHT |
|---|---|---|---|---|---|---|
| Junior | 18.5" | 10.6" | 13.5" | 70 | 73 | 1.95lbs |
| Expert | 19.25 | 11" | 14" | 70 | 73 | 2lbs |
| Expert XL | 20" | 11" | 14" | 70 | 73 | 2.1lbs |
| Pro | 20.5" | 11.5" | 14.75" | 72 | 74 | 2.6lbs |
| Pro XL | 21" | 11.5" | 15.2" | 72 | 74 | 2.67lbs |
| Pro XXL | 21.75" | 11.5" | 15.2" | 72 | 74 | 2.72lbs |
| Pro XXXL | 22" | 11.5" | 15.2" | 72 | 74 | 2.80lbs |
| Pro 24" | 21" | 12" | 15.4" | 69.5 | 73 | 3.1lbs |
| Pro XL 24" | 21.75" | 12" | 15.4" | 69.5 | 73 | 3.2lbs |
